◎ 해당 제품은 에스티원에서 직접 주문제작 한 제품입니다.

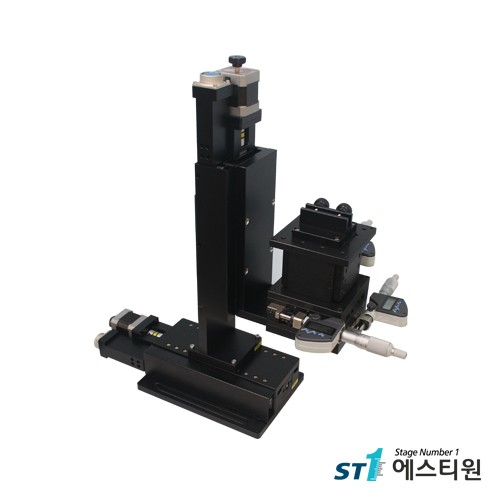

XZ-Motorized System / XYZ Digimatic Micro Stage

​

​Spec.

​

1.Motorized Stage (X-Axis)  /  Model No : SM1-0815-3S

- Table Dimension(mm) : 80X210

- Travel Range(mm) : 150

- Travel Guide : Ball Screw Ø8 Lead 1, Cross Roller Guide

- Resolution(mm) : 0.002 / Pulse

- Maxismum Speed : 10mm/sec

- Accuracy(mm) : 0.020

- Repeatability(mm) : ±0.0015

- Flatness(mm) : 0.03

- Metarial : Aluminum

- Load Capacity(kg) : 15

- Sensor : 1 Home Sensor, 2 Limit Sensor

- Motor Model : A3K-S545W

2. Motorized Stage (Z-Axis)  /  Model No : SM4-0815-3S

- Table Dimension(mm) : 80X210

- Travel Range(mm) : 150

- Travel Guide : Ball Screw Ø8 Lead 1, Cross Roller Guide

- Resolution(mm) : 0.002 / Pulse

- Maximum Speed : 10mm / Sec

- Accuracy(mm) : 0.020

- Repeatability(mm) : ±0.0015

- Flatness(mm) : 0.03

- Material : Aluminum

- Load Capacity(kg) : 9

- Sensor : 1 Home Sensor, 2 Limit Sensor

- Motor Model : A3K-S545W

- Connector : 원형 16P

- Z-Bracket 포함

3.Motion Control Box  /  Model No : STM-2-USB

- 2-Aixs Motion Controller 포함

- 기본 Motion Software 제공 (CD/Manual)

- 기능 : Scan Mode Preset Mode, Speed Control, Program Edit Mode

  → 기본 Motion Software 사용으로 3-Axis 동시 제어 불가함

- XY-Axis, Z-Axis 으로 Comport 나눠 Motion Control

- RS-232C / USB 통신방식 지원 (기본 USB 통신방식 지원)

- Labview 호환 가능 (요청시, Labview Library 제공 가능)

  → 단, Labview 관련 상담 및 대응 불가함

- Middle Calbe 3M 1ea, Power Cable 1ea, 통신 Cable 1ea 포함

4.L-Bracket

​

​

​

5. XYZ-Stage 100X100  /  Model No : SS3H-100

- Microhead Posotion : Left

- Stage SUrface(mm) : 100X100

- Stroke (mm) : XY : ±12.5

                             Z : ±12.5

- Resolution(mm) : 1㎛/division(0.001)

- Travel Guide : Crossed Roller Bearing

- Meaterial : Aluminum

- Load Capacity(kg/f) : 5

- Weight(kg) : 2.24

- Digimatic Micrometer Head 사용
