◎ 해당 제품은 에스티원에서 직접 주문제작 한 제품입니다.

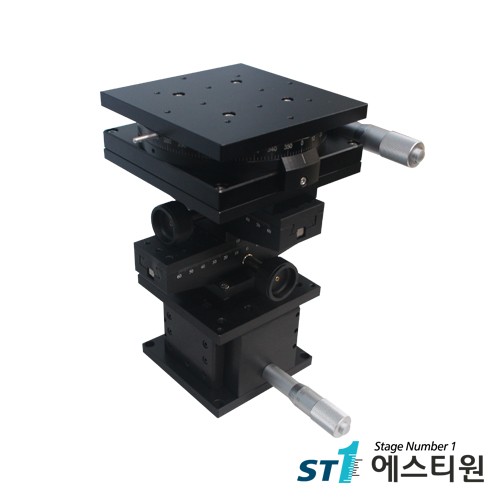

XYZR-Maunal Stage [ST-XYZR-SM]

​

​Spec.

​

1) Dovetail XY-Stage  /  Model No : D2-414

- Size(mm) : 40X140

- Stroke(mm) : ​±60

- Travel Guide : Surface to SurFace / Rack & Pinion

- Parallelism(mm) : 0.0

- Straightness(mm) : 0.03

- Load Capacity(kg/f) : 3.8

- Marerial : Aluminum

- Weight(kg) : 1.1

2) Rotation Stage  /  Model No : R11-125

- Stage Surface(mm) : Ø125

- Travel Range(mm) : 360˚/±5˚

- Travel Guide : Bush

- Reading(mm) : 0.2˚ / Vernier

- Material : Aluminum

- Load Capacity(kg/f) : 5

- Weight(kg) : 0.9

3) Z-Stage 100X100  /  Model No : SS6H-100

- Z-Stage Type : Horizontal

- Stage Surface(mm) : 100X100

- Stroke(mm) : ±12.5

- Resolution(mm) : 10㎛

- Travel Guide : Crossed Roller Bearing

- Material : Aluminum

- Load Capacity(kg/f) : 5

- Weight(kg) : 1.1

4) Middle Plate  /  Model No : ST-MP606010

5) Middle Plate / Model No : ST-MP12512515

6) Middle Plate / Model No : ST-MP12512510
